| Product | Epoxy set / 6ml |
|---|---|
| Code | WBE-EPO-6 |
| Volume | 6ml |
| Color |
Product description

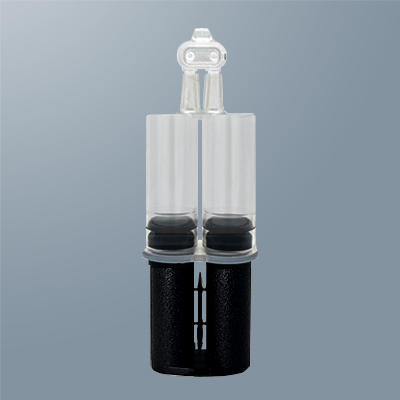

Epoxy set / 6ml

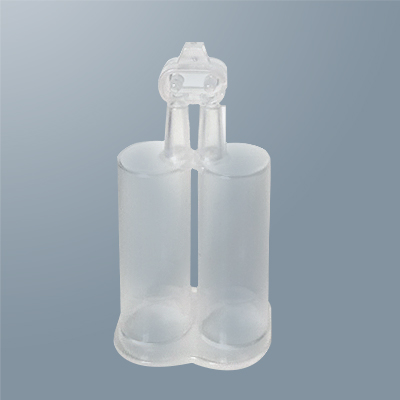

■ PRODUCT Epoxy Barrel 6ml
A |
Overall Height |
66.98 ± 0.5mm |
B |
Body Height |
41.56 ± 0.5mm |
C |
External Diameter |
34.75 ± 0.1mm |
D |
External Diameter |
27.35 ± 0.1mm |
E |
Inside Diameter |
Ø16.07 ± 0.2mm |
F |
External Diameter |
Ø14.47 ± 0.2mm |
|
Weight |
4.74g ± 0.5g |

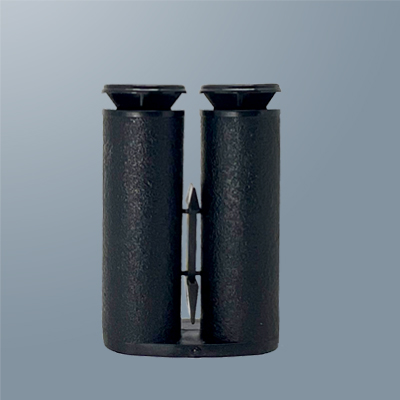

■ PRODUCT Epoxy Plunger
A | Length | 44.30 ± 1.0mm |
B | Width | 30.00 ± 0.2mm |
C | Diameter | Ø13.80 ± 0.1mm |
D | Height | 15.04± 0.2mm |
Weight |
