제품 정보
| Product | 401type bottle 10g |
|---|---|
| Code | WB4-10-N |
| Volume | 10g |
| Color | natual |
Product description

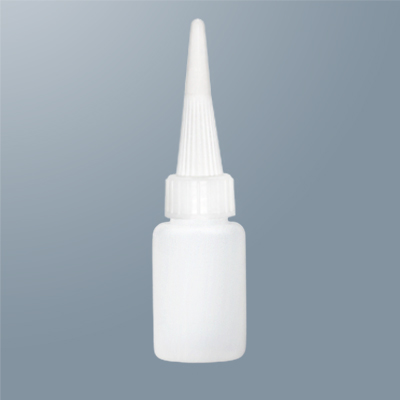

401type bottle 10g (natual) / Cap&Nozzle

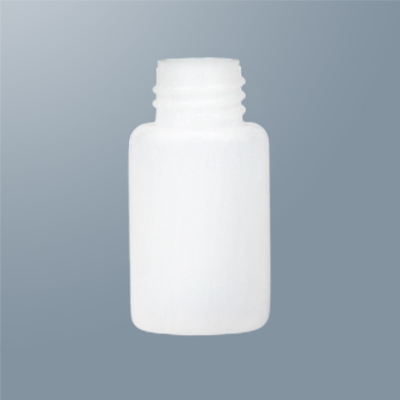

■ PRODUCT 401 type bottle 10g
Height |
51.60 mm (±0.5 mm) |
Neck Height |
12.02 mm (± 0.5 mm) |
Length |
26 mm (± 0.5 mm) |
Diameter |
Ø17.70 (± 0.2 mm) |
Weight |
4.04 g (± 0.5 g) |

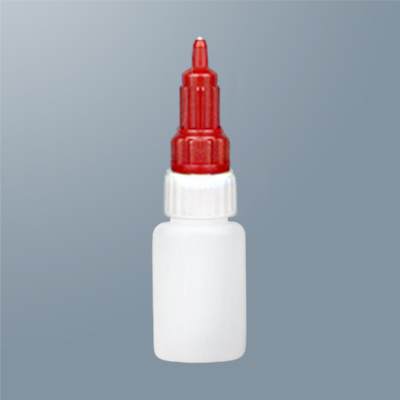

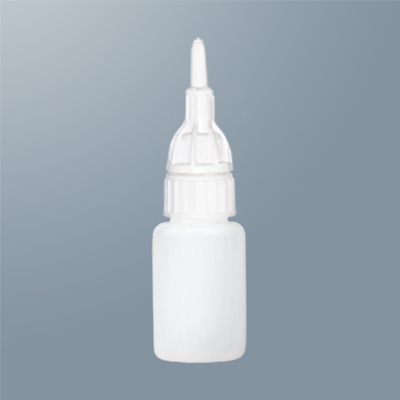

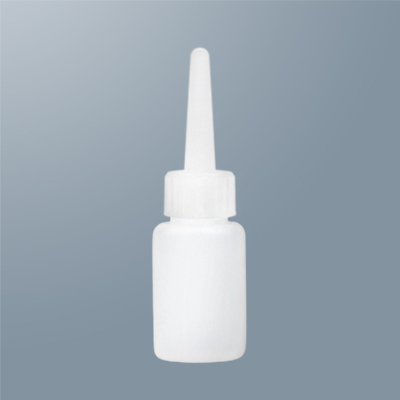

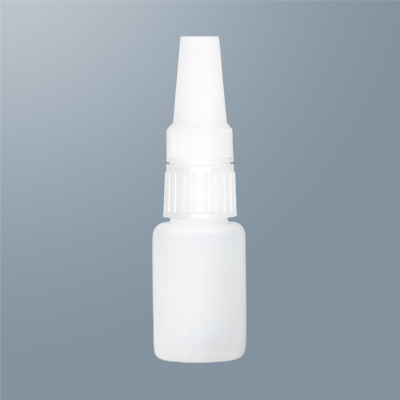

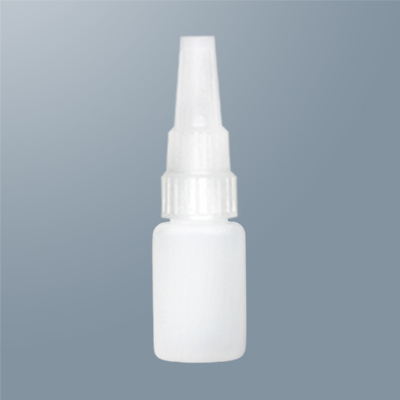

■ PRODUCT Cap & Nozzle
Cap |
Diameter |
Height | Weight |
General (metal pin-in) |
Ø13.80 (± 0.2 mm) |
39.02 mm (± 0.2 mm) | 2.60 g (± 0.2 g) |
20 mm Push-Down |
Ø12.95 (± 0.2 mm) |
39.51 mm (± 0.2 mm) | 2.83 g (± 0.2 g) |
Push-Down (metal pin-in) |
Ø16 (± 0.2 mm) |
39.15 mm (± 0.2 mm) | 2.82 g (± 0.2 g) |
Curved short |
Ø11.55 (± 0.2 mm) |
32.90 mm (± 0.2 mm) | 1.71 g (± 0.2 g) |
Pull-up |
Ø7.90 (± 0.2 mm) |
35.75 mm (± 0.2 mm) | 1.05 g (± 0.2 g) |
Pull-up long |
Ø14.65 (± 0.2 mm) |
49.10 mm (± 0.2 mm) | 1.15 g (± 0.1 g) |
Twist B Type |
Ø1.52 (± 0.2 mm) |
39.74 mm (± 0.2 mm) | 1.73 (± 0.2 g) |
Twist A Type |
Ø13.35 (± 0.2 mm) |
39.95 mm (± 0.2 mm) | 1.56 g (± 0.2 g) |
| |||
Nozzle | Diameter | Height | Weight |
Nozzle 401 Type | Ø16.50 (± 0.2 mm) | 45.60 mm (± 0.2 mm) | 2.98 g (± 0.3 g) |
Nozzle Twist | Ø16.55 (± 0.2 mm) | 45.60 mm (± 0.2 mm) | 2.98 g (± 0.3 g) |
